BATTERY CONNECTOR

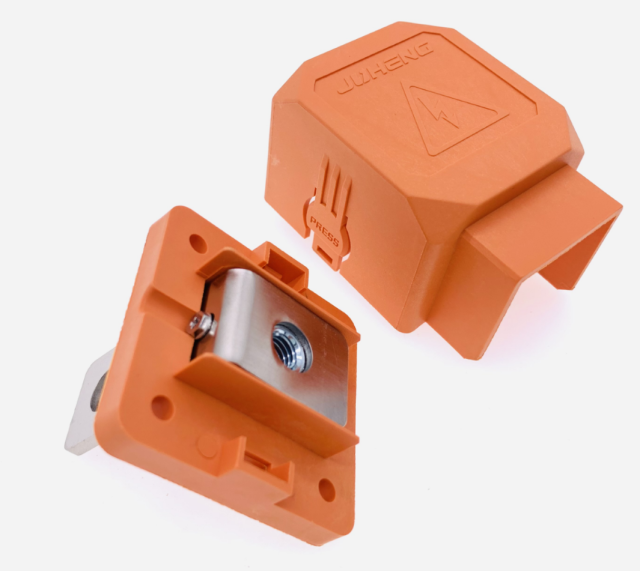

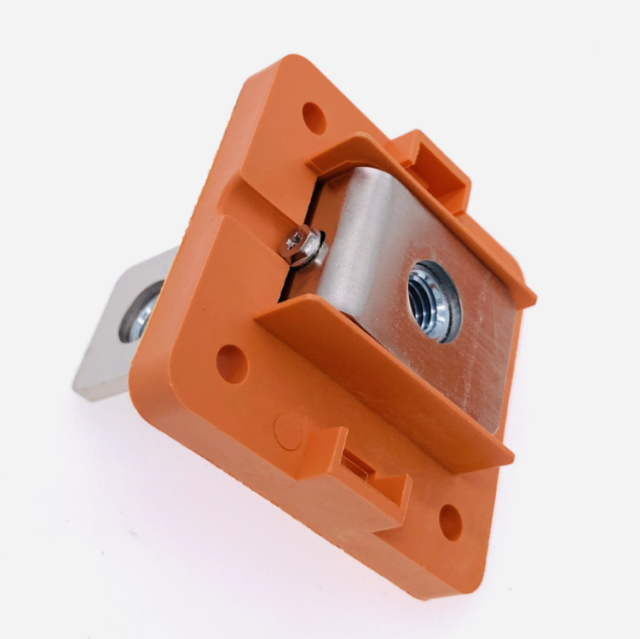

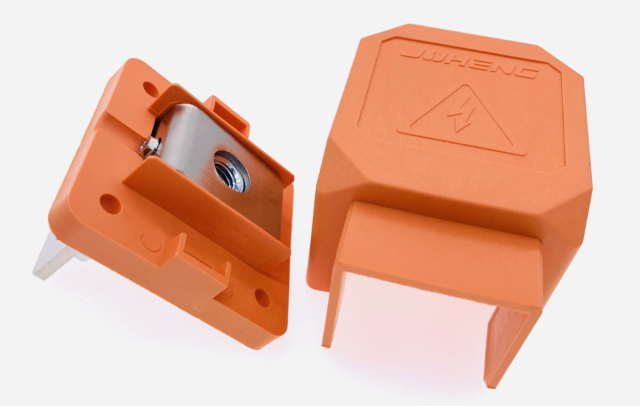

300AMP Energy storage battery connector
Item No.: 1
Energy storage battery connector Lithium Battery Terminals
Login to see price
Description
1、Electrical parameters
■ Rated Voltage：1500V DC
■ Rated current：300AMP
■ Withstand voltage：4200V DC
■ Insulation Resistance：≥500MΩ
■ Contact Resistance：≤0.5mΩ
2、Mechanical parameter
■ Contact surface diameter：18mm
■ Screw bore diameter：M8
■ Tightening torque: M8 Threaded hole (Coarse thread)：20N.m MAX
3、Materials composition
■ Conductor: T2 copper, nickel plated
■ Insulating material：PA66 Flame retardant V0 Level
■ Insulation parts thermal deformation temperature：205℃

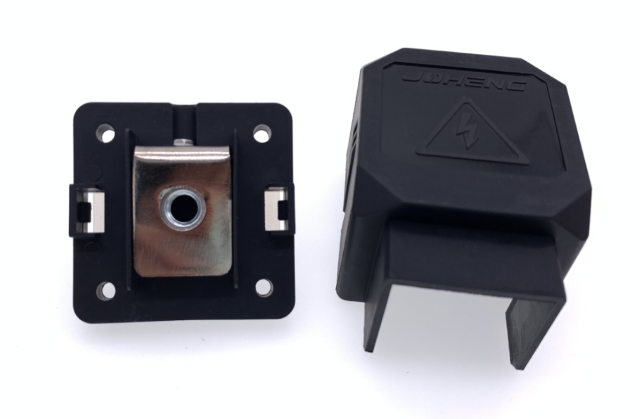

■ Color：Positive pole orange color / Negative pole black color
■ Sealing ring: silicone

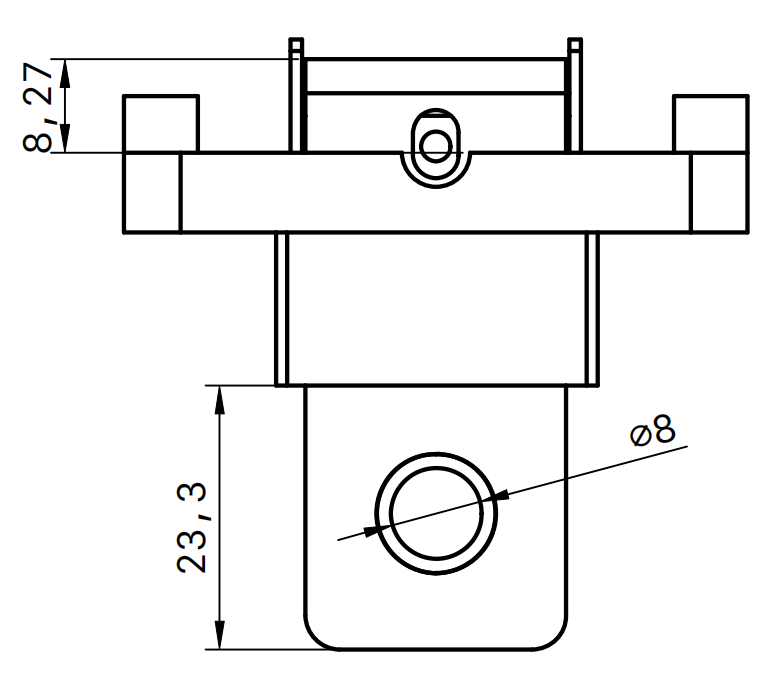

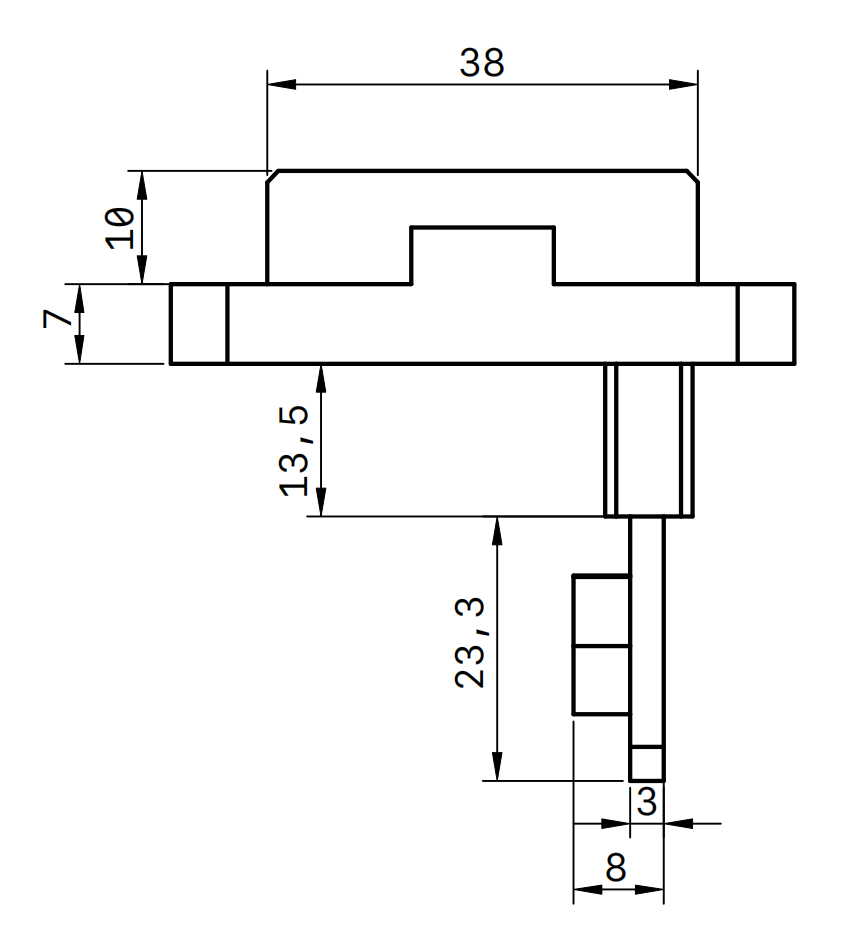

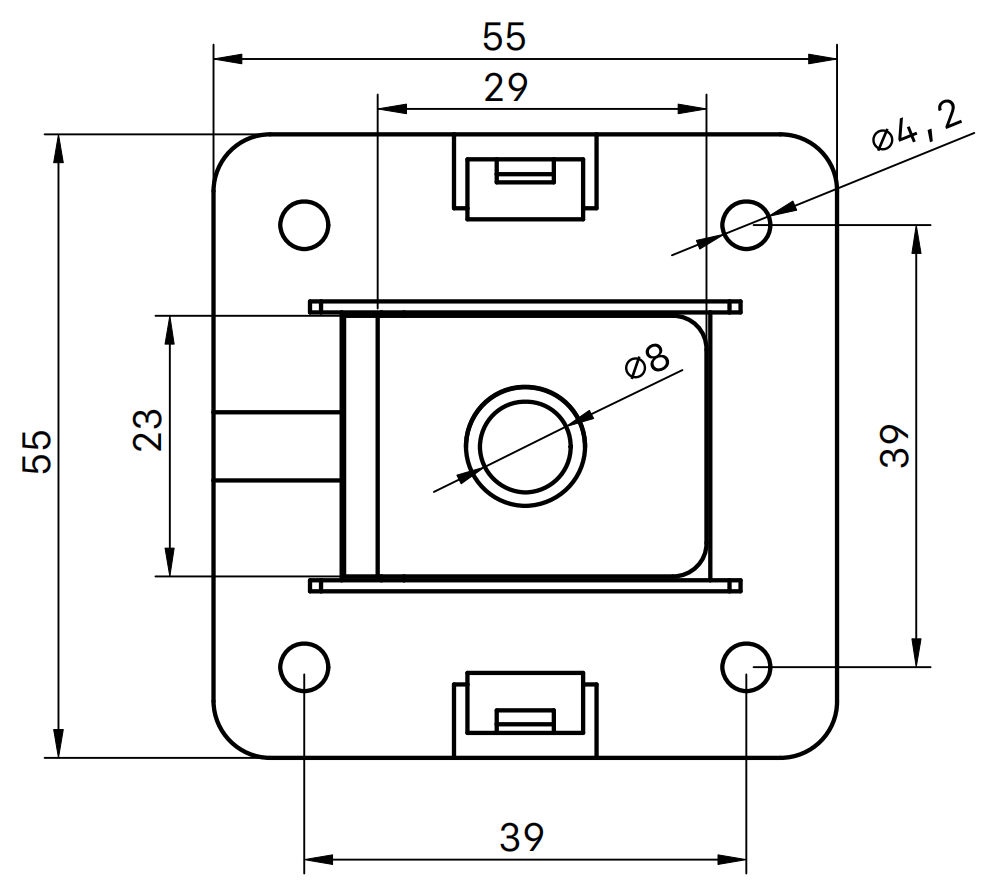

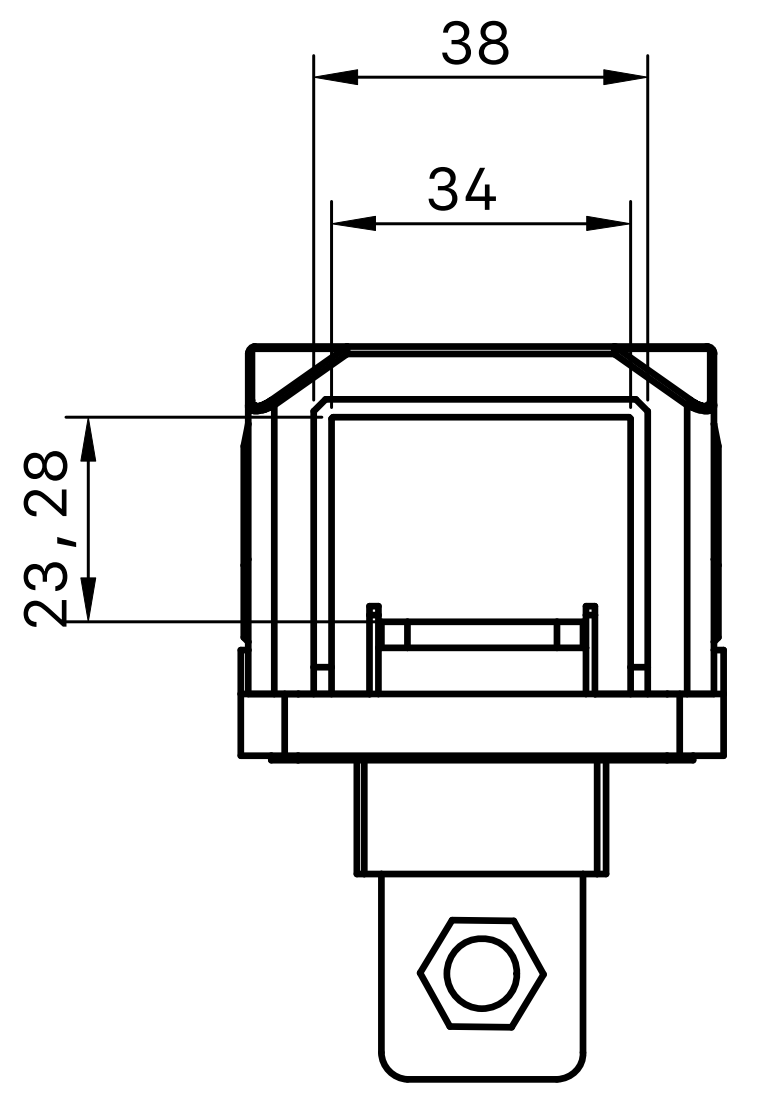

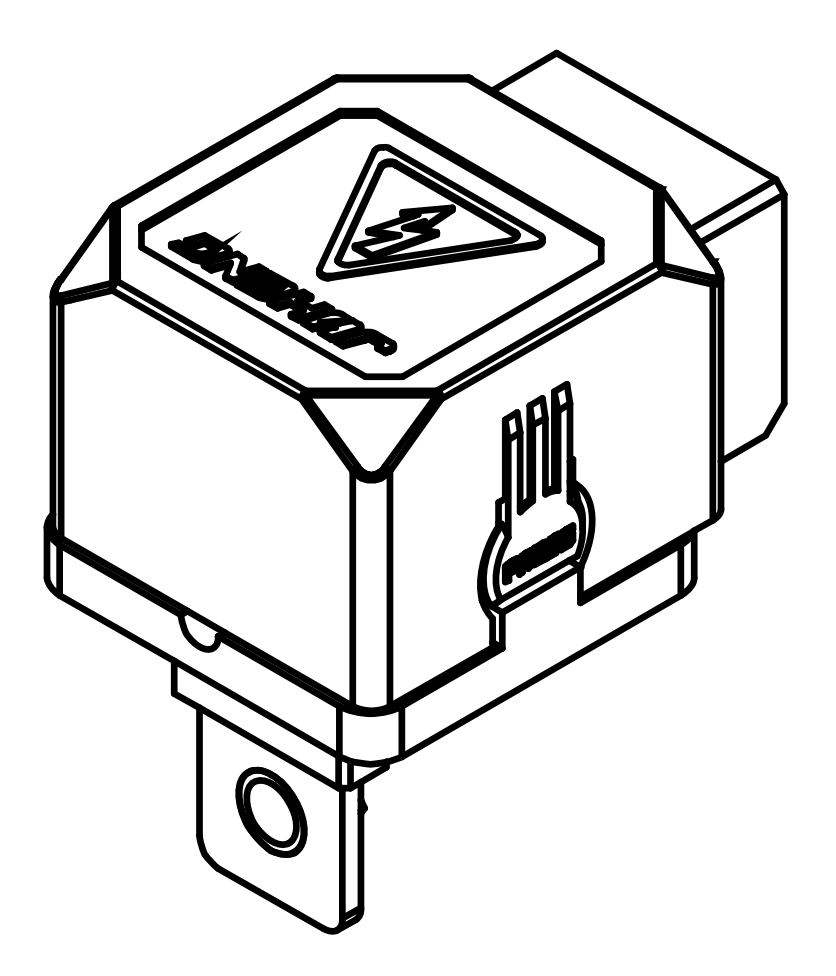

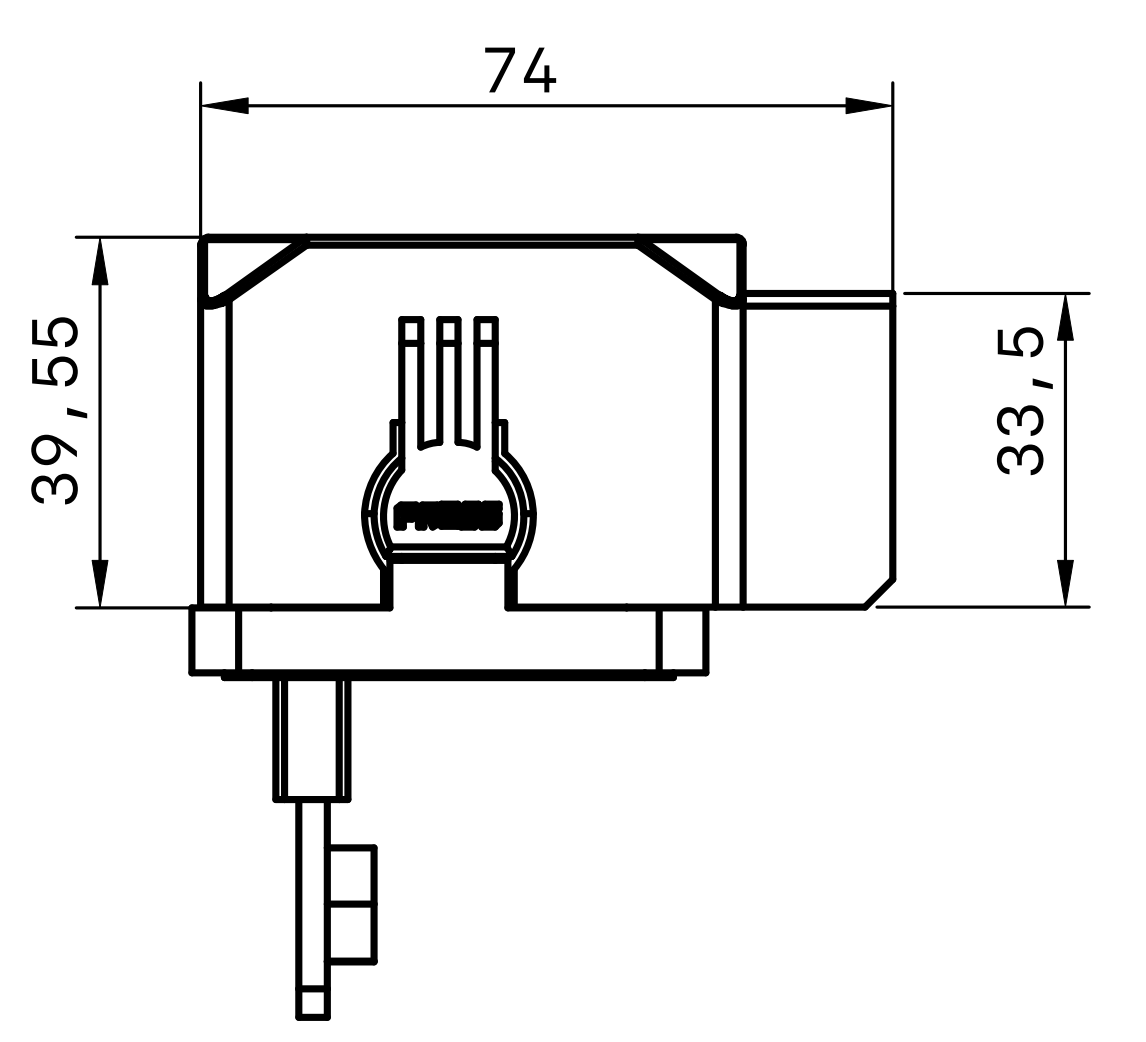

External dimension
Units：mm
■ Rated Voltage：1500V DC
■ Rated current：300AMP
■ Withstand voltage：4200V DC
■ Insulation Resistance：≥500MΩ
■ Contact Resistance：≤0.5mΩ
2、Mechanical parameter
■ Contact surface diameter：18mm
■ Screw bore diameter：M8
■ Tightening torque: M8 Threaded hole (Coarse thread)：20N.m MAX
3、Materials composition
■ Conductor: T2 copper, nickel plated
■ Insulating material：PA66 Flame retardant V0 Level
■ Insulation parts thermal deformation temperature：205℃
■ Color：Positive pole orange color / Negative pole black color
■ Sealing ring: silicone
External dimension
Units：mm
