Name: 200AMP Energy storage battery connector
Brand: Juheng technologies co. Ltd.
SKU: JH-LJ-200A-4X-DW-R/BR
Availability: InStock
Rating: 5 (1 reviews)

Description

Functional Reliability for Energy Storage Systems
The 200AMP Energy Storage Battery Connector is engineered to meet the stringent demands of energy storage system integrators and battery PACK manufacturers. Its capability to safely handle rated currents up to 200AMP and voltages to 1000V DC makes it a dependable component for high-load battery pack builder operations. This connector ensures error-free installation through polarity color-coding and utilizes flame-retardant insulating materials, addressing the safety and precision requirements of professional system developers working with lithium ion battery technologies.

Precision Engineering and Technical Specifications
Constructed with nickel-plated brass conductors, the connector provides excellent conductivity while resisting corrosion under harsh conditions. The insulating body, made from V0-rated PA66 material, offers enhanced electrical insulation and thermal stability up to 205°C. Measuring 18mm contact diameter with M6 and M8 screw apertures, the connector features low contact resistance (≤0.5mΩ) and high insulation resistance (≥500MΩ). Silicone sealing rings provide environmental sealing, safeguarding against moisture ingress and ensuring longevity essential for battery PACK integration in demanding environments.

Integration in Industry-Grade Battery Solutions
This connector is widely applicable in commercial and industrial energy storage arrays, particularly in renewable energy installations such as off-grid solar power systems, backup power UPS solutions, and lithium ion battery packs designed for electric vehicles. Its robust build quality and standardized dimensions facilitate compatibility with existing energy storage infrastructure, supporting battery pack manufacturers and assemblers in delivering high-performance, safe, and scalable battery PACK products that comply with regulatory and operational standards.

Product Advantages

Structural Integrity and Modular Design Suitability
The 200AMP connector’s design prioritizes mechanical robustness and modularity, essential for modern battery PACK assemblies. The brass, nickel-plated conductor composition ensures both high conductivity and resistance against corrosion, crucial for long-term stability. Its flame-retardant PA66 insulating components and silicone seals enhance safety by reducing fire hazards and environmental degradation. This makes it suitable for battery pack manufacturers aiming for durable interconnect solutions within lithium ion battery modules that are subject to repeated thermal and mechanical stresses.

Enhanced Performance and Installation Efficiencies
Performance-wise, the connector minimizes contact resistance to maintain efficient current flow, which is vital for maximizing battery PACK output and longevity. The clear polarity color coding reduces installation errors and accelerates assembly time, a key benefit for battery pack builders managing complex wiring schemes. Additionally, the product’s compliance with high voltage and current standards ensures reliable operation in high-demand scenarios, thereby enhancing overall system safety and operational uptime in lithium ion battery battery PACK applications.

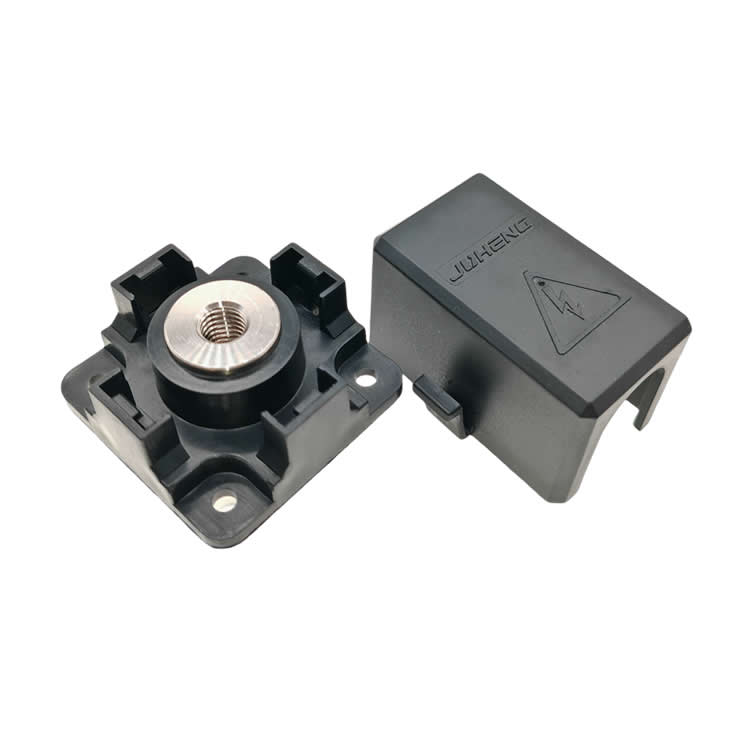

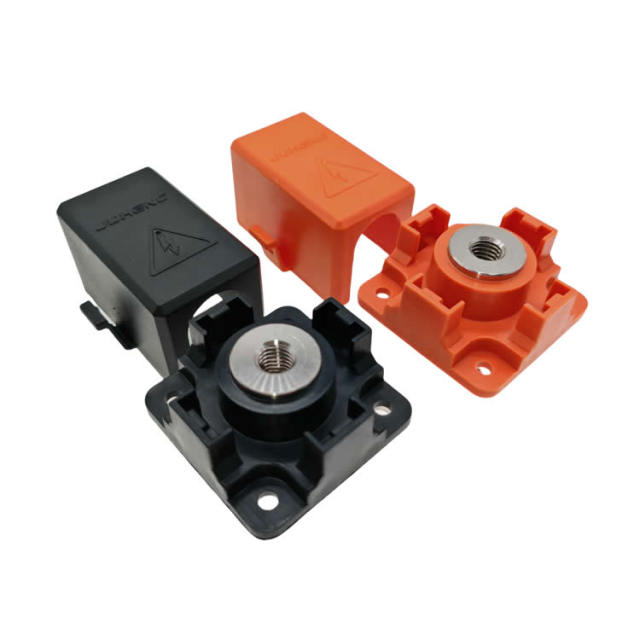

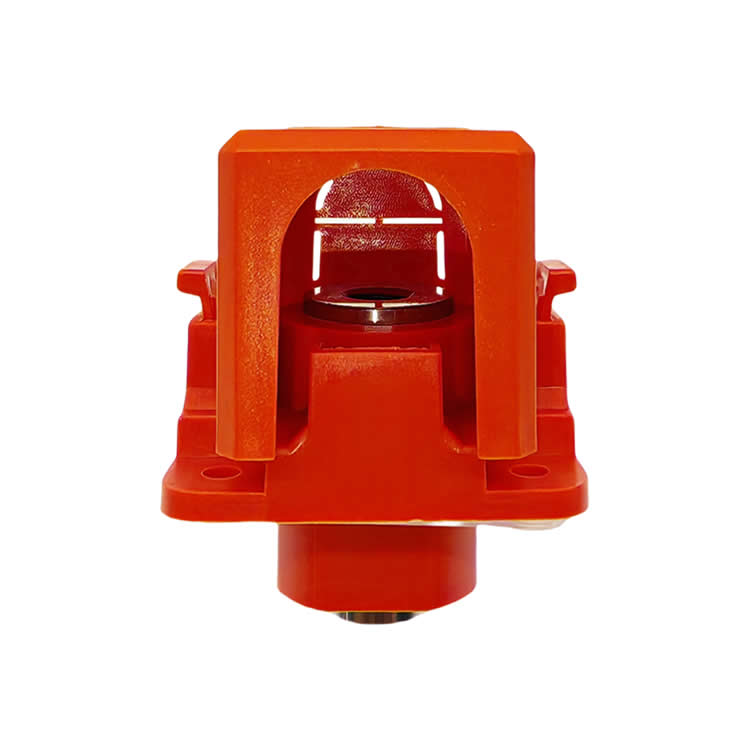

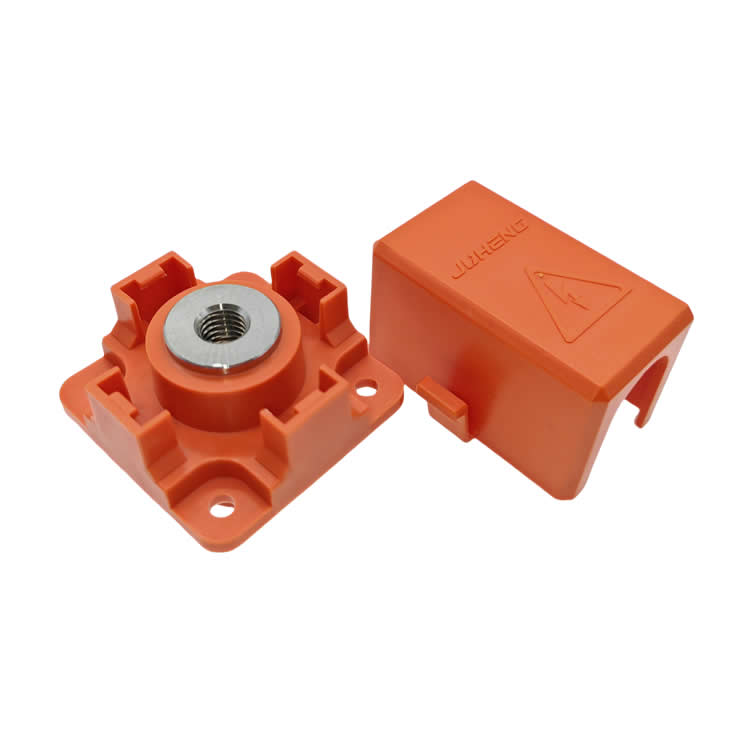

Ⅰ、Product appearance

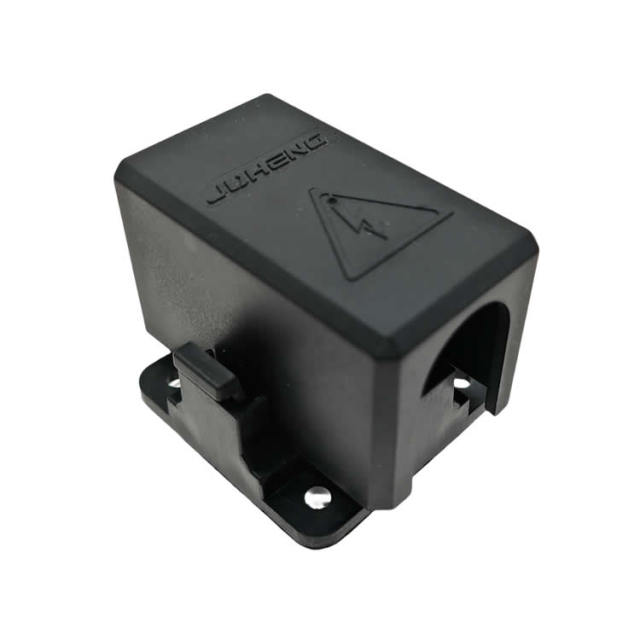

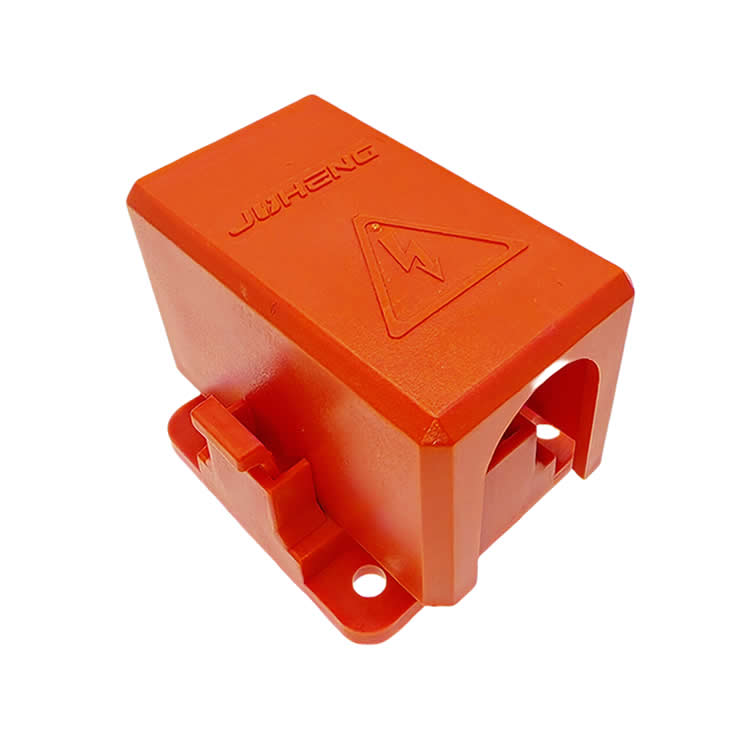

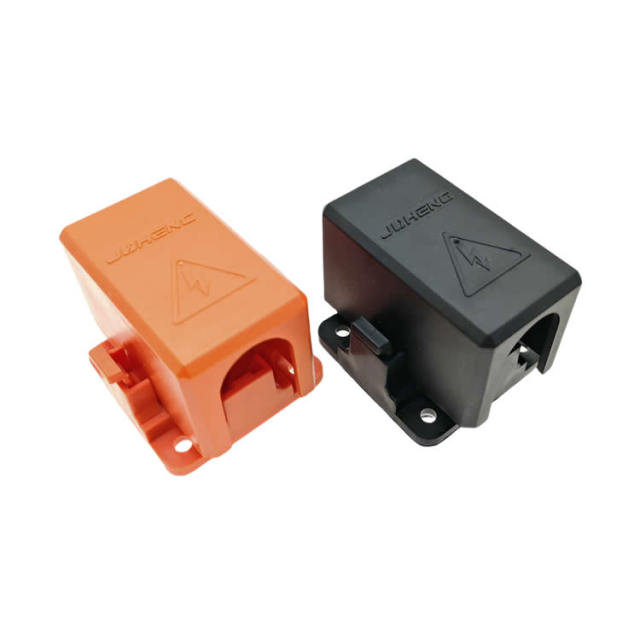

Positive pole:JH-LJ-200A-4X-DW-R	Negative pole:JH-LJ-200A-4X-DW-BK
Ⅱ、Performance parameter： 1、Electrical parameters ■ Rated Voltage：1000V DC ■ Rated current：200AMP ■ Withstand voltage：3500V DC ■ Insulation Resistance：≥500MΩ ■ Contact Resistance：≤0.5mΩ 2、Mechanical parameter ■ Contact surface diameter：18mm ■ Aperture of external screw：M8 ■ Internal screw aperture：M6 ■ Tightening torque: M6 Threaded hole (Coarse thread)：9N.m MAX,M8-12N.m MAX 3、Materials composition ■ Conductor: brass, nickel plated ■ Insulating material：PA66 Flame retardant V0 Level ■ Insulation parts thermal deformation temperature：205℃ ■ Color：Positive pole orange color / Negative pole black color ■ Sealing ring: silicone

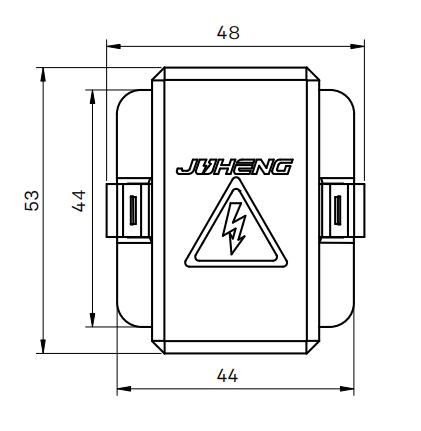

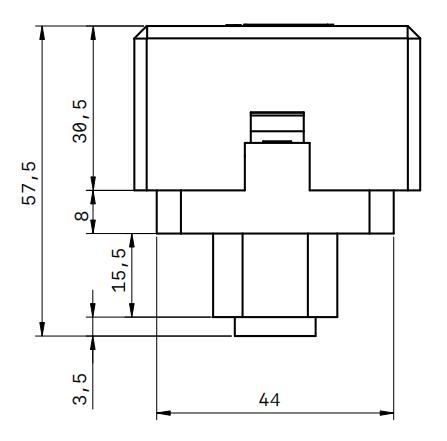

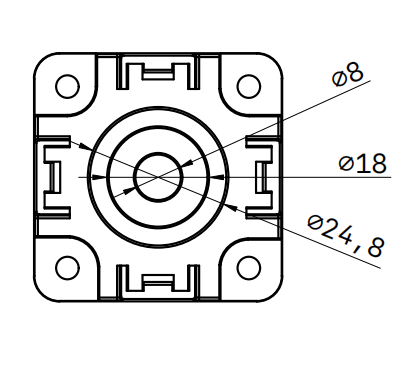

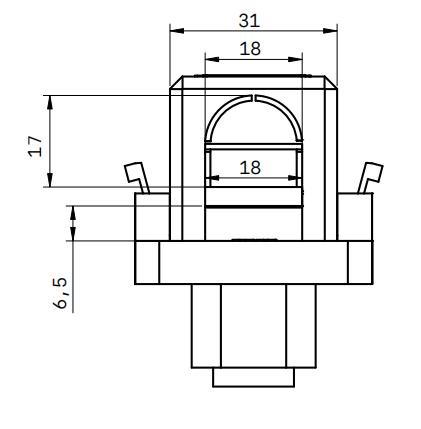

Ⅲ、External dimension Units：mm

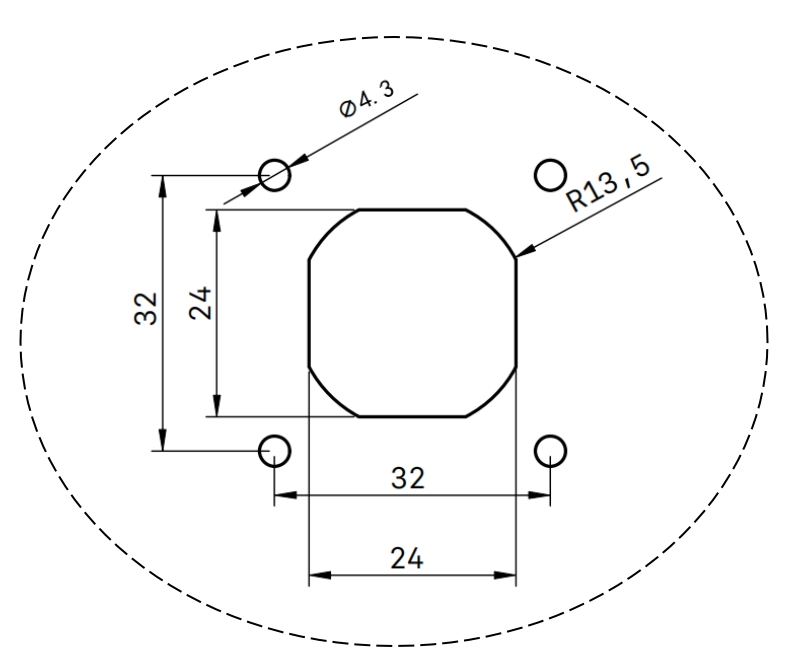

Ⅳ、Installation trepanning Units:mm

Use Scenarios

Application in Commercial Energy Storage Installations
In commercial energy storage systems, the 200AMP Energy Storage Battery Connector enables secure and efficient linking of high-capacity battery modules. Its rated current and voltage specifications align with the operational demands of large-scale lithium ion battery arrays, typically used to stabilize power supply and support load balancing. The connector’s resistance to environmental factors facilitates long-term deployment in facilities requiring consistent performance and strict compliance, helping battery PACK manufacturers deliver dependable solutions across networked energy storage environments.

Integration in Off-Grid Solar Power Systems
For off-grid renewable energy systems, this connector serves as a critical interface within battery PACK configurations that store solar-generated electricity. The combination of high current rating and environmental sealing supports variable outdoor conditions, ensuring operational safety and durability. Battery pack builders benefit from its compatibility with lithium ion battery technologies, enabling seamless assembly and maintenance of robust energy storage solutions that underpin off-grid power autonomy and reliability.

FAQ

What materials are used in the 200AMP Energy Storage Battery Connector to ensure durability and safety?
The connector features brass conductors with nickel plating for excellent conductivity and corrosion resistance. Its insulating components are made of flame-retardant PA66 material, rated V0, ensuring safety and thermal stability for demanding battery PACK applications.

Is it possible to customize the 200AMP Energy Storage Battery Connector to fit specific battery pack designs?
Yes, customization options are available to meet various technical specifications. Please contact the manufacturer directly to discuss your requirements, especially if you are a battery pack builder seeking tailored solutions for integration in lithium ion battery systems.

What installation features help prevent wiring errors with this battery connector?
The connector is color-coded with orange for the positive pole and black for the negative pole, simplifying polarity identification and reducing installation errors. Silicone sealing rings enhance environmental protection, ensuring reliable connections for battery pack connectors in energy storage systems.

How does Huanghua Juheng Technology support delivery and logistics for orders of 200AMP connectors?
Delivery times vary based on order size and destination. Our location near Tianjin and Huanghua ports ensures efficient logistics within the Bohai Sea Economic Circle. For precise delivery estimates, please contact our sales team directly to coordinate shipments and meet project timelines.
