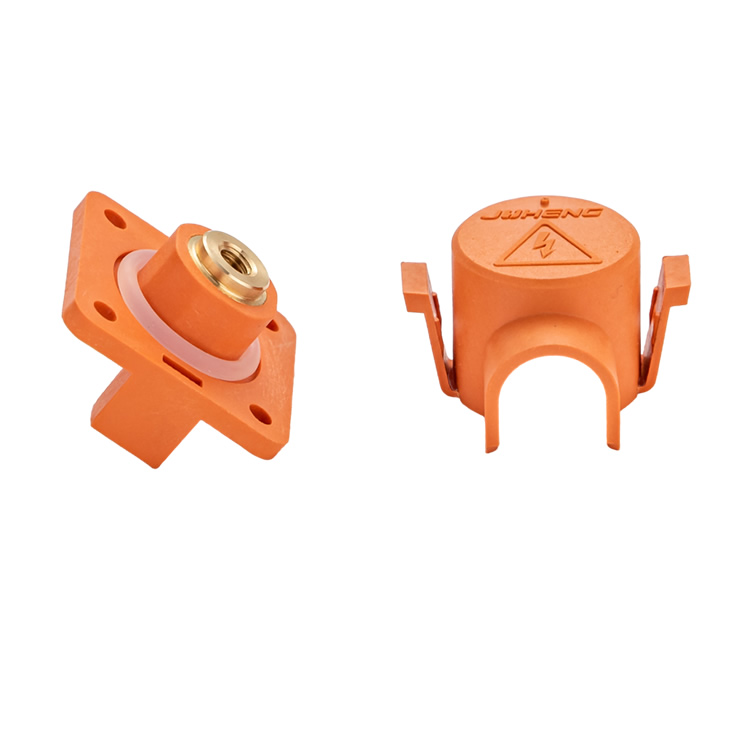

Precise Electrical Connectivity for Battery Pack Builders This lithium battery terminal is engineered specifically for professionals involved in assembling battery PACK systems, including battery pack manufacturers and battery pack builders. It ensures dependable electrical connections within lithium ion battery configurations, supporting currents up to 60AMP and voltages to 600V DC. The terminal’s color-coded design facilitates accurate polarity identification, optimizing installation precision and system safety. Integrating easily with various battery pack models, it is suitable for those prioritizing consistent performance and compliance into scalable energy storage solutions.
Advanced Materials and Rigorous Electrical Specifications Constructed with nickel-plated brass conductors, this component provides exceptional conductivity and robust corrosion resistance vital to lithium ion battery safety and longevity. The insulating PA66 housing achieves a V0 flame retardant rating and withstands thermal deformation up to 205°C, ensuring operational stability under demanding conditions. Enhanced sealing with silicone rings reduces contamination risks, while electrical parameters such as ≥500MΩ insulation resistance and ≤0.5mΩ contact resistance promote minimal power loss. Controlled torque installation through an M5 connection point supports repeatable secure assembly in battery PACK applications.
Integration Within Critical Industry Systems This terminal is applied extensively in energy storage battery PACK systems, electric vehicles, uninterruptible power supplies (UPS), and modular battery packs where reliable 50AMP to 60AMP battery connections are required. Its adherence to flame retardant standards and thermal specifications make it suitable for rigorous industrial environments. Battery pack manufacturers incorporate these connectors to enhance system safety and maintain electrical integrity in demanding workflows. The design supports straightforward maintenance and replacement, reducing downtime in production and servicing.
Product Advantages
Optimized Structural Design for Battery Pack Assembly The lithium battery terminal features a thoughtful design facilitating integration in complex battery PACK builds, favored by battery pack manufacturers and builders. Use of nickel-plated brass ensures mechanical strength and electrical conductivity, while the PA66 insulating material with V0 flame retardance enhances overall system safety. Color-coded poles and silicone sealing rings improve assembly efficiency and long-term durability by preventing miswiring and environmental ingress. The M5 screw bore with specified maximum tightening torque guarantees consistent connection quality, critical in high-reliability battery pack environments.
Enhanced Performance and User-Centric Usability Performance metrics such as low contact resistance and high insulation resistance enable efficient current flow vital to lithium ion battery operations, minimizing energy losses and heat generation. The robust thermal resistance up to 205°C lends confidence in sustained operation in elevated temperature conditions common to battery PACKs. Clear polarity indicators reduce installation errors for battery pack builders, streamlining workflow and system commissioning. These terminals also support ease of maintenance and reliable replacement, contributing to operational continuity and reduced lifecycle costs for battery pack manufacturers.

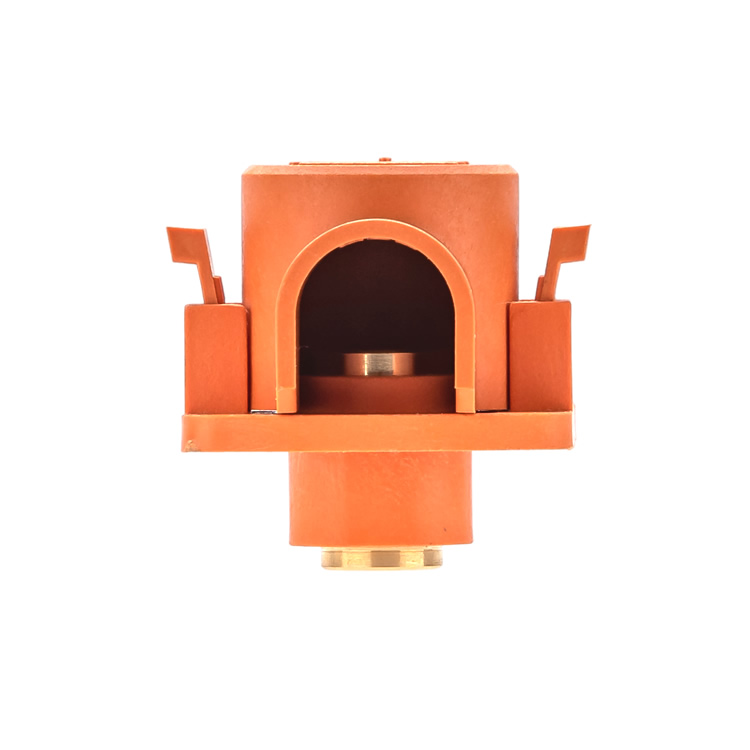

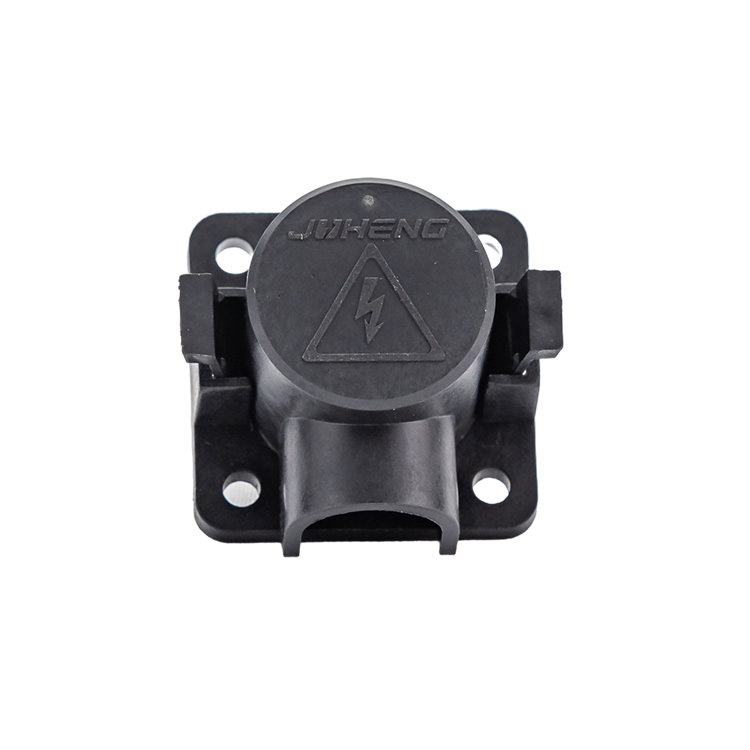

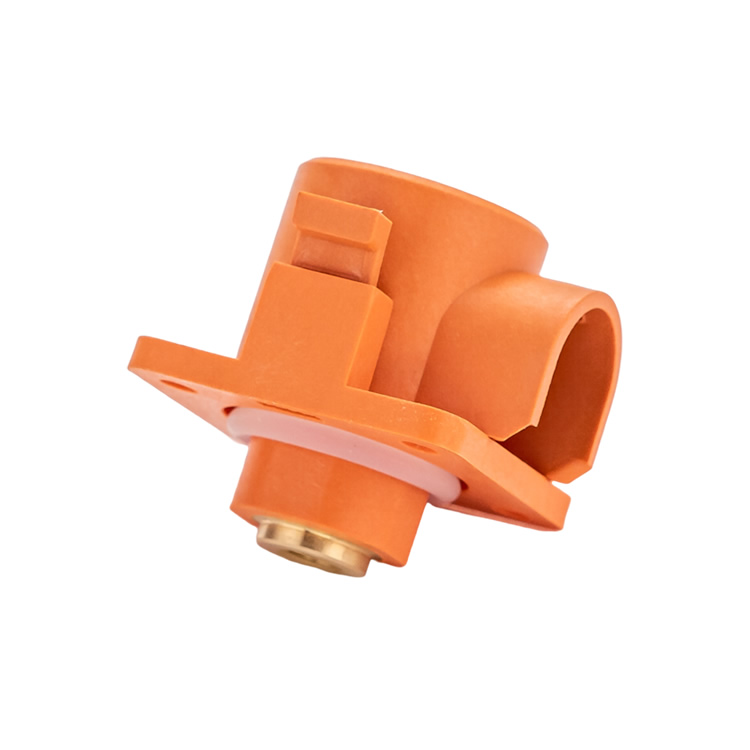

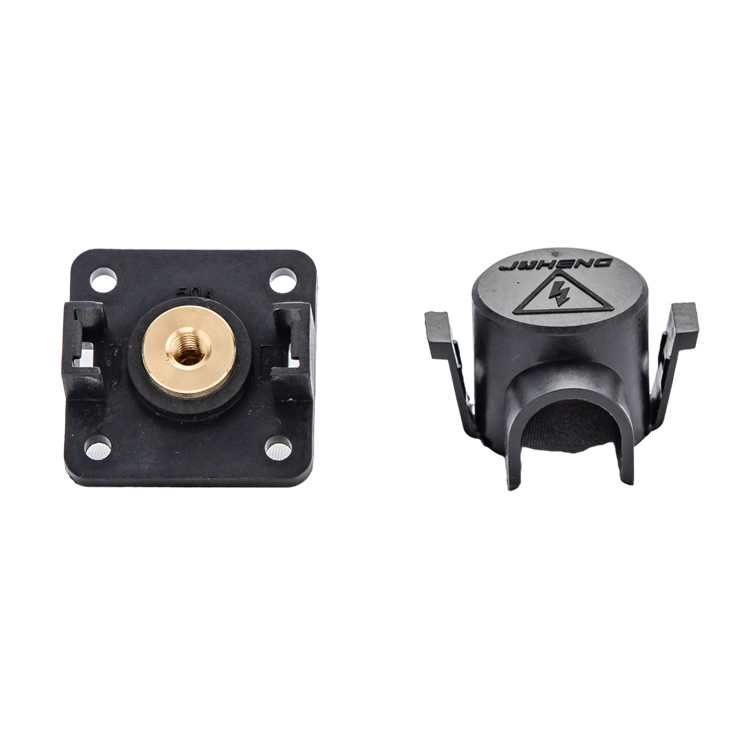

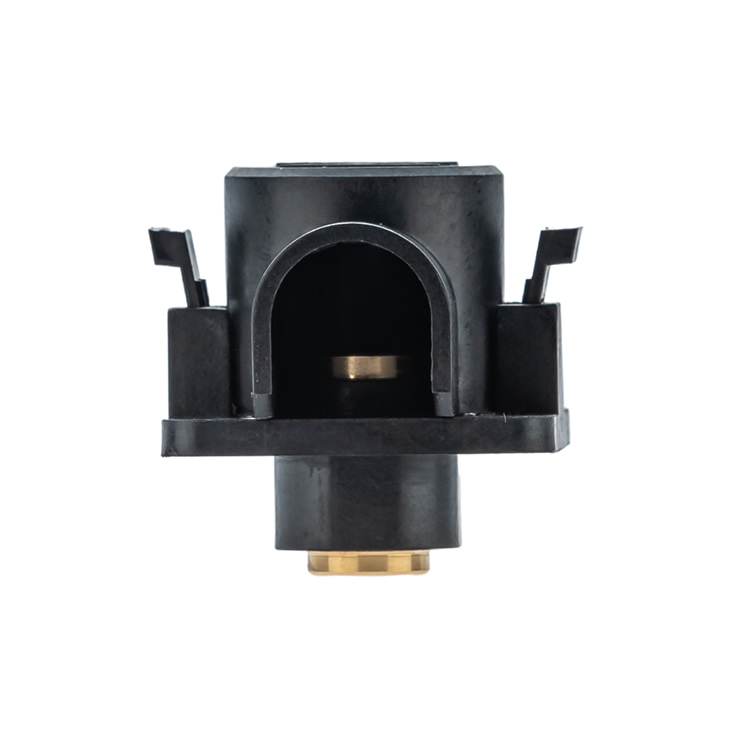

Performance parameter： 1、Electrical parameters ■ Rated Voltage：600V DC ■ Rated current：60AMP ■Withstandvoltage：1000V DC ■ Insulation Resistance：≥500MΩ ■ Contact Resistance：≤0.5mΩ 2、Mechanical parameter ■ Contact surface diameter：12mm ■ Screw bore diameter：M5 ■ Tightening torque: M5*8 Threaded hole (Coarse thread)：3N.m MAX 3、Materials composition ■ Conductor: brass , nickel plated ■ Insulating material：PA66 Flame retardant V0 Level ■ Insulation parts thermal deformation temperature：205℃ ■ Color：Positive pole orange color / Negative pole black color ■ Sealing ring: silicone

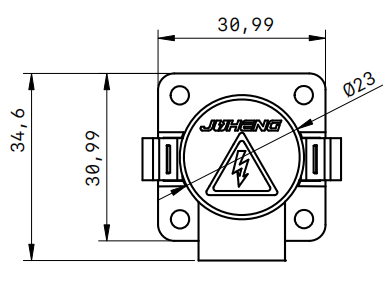

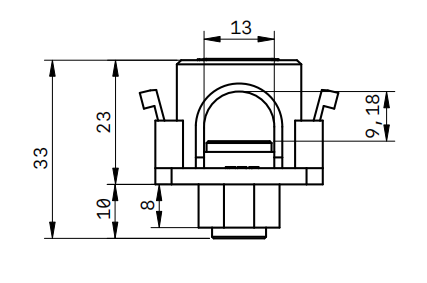

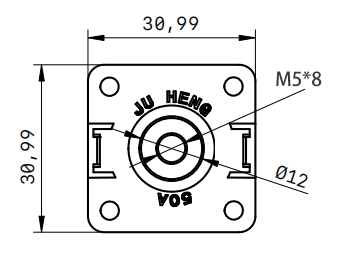

Externaldimension Units：mm

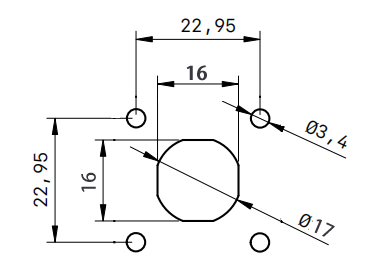

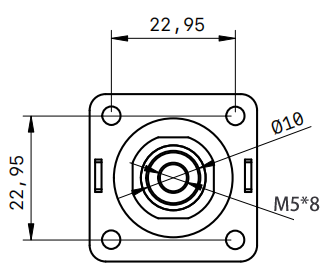

Installation trepanning
Units:mm
Use Scenarios
Application in Energy Storage Systems and UPS Deployment In large-scale energy storage systems and uninterruptible power supplies (UPS), maintaining stable and safe battery connections is essential. This lithium battery terminal functions as a critical link, ensuring reliable electrical performance supporting up to 60AMP in lithium ion battery PACK configurations. The terminal’s flame retardant housing and thermal resilience comply with industry safety standards, protecting sensitive equipment. Its integration capability simplifies modular battery PACK assembly and maintenance workflows, making it invaluable for battery pack manufacturers focused on high uptime and operational safety in industrial and commercial power setups.
Role in Electric Vehicle Battery Pack Construction Electric vehicles demand robust and precise battery pack connectors to sustain dynamic power loads while ensuring safety and longevity. This terminal supports 50AMP to 60AMP current flows typical in electric vehicle battery PACKs, facilitating stable and corrosion-resistant connections crucial for lithium ion battery systems. Its color-coded polarity identification expedites quality assembly by battery pack builders, reducing risks of faulty installation. Moreover, the thermal endurance and secure screw fastening mechanisms allow integration into the dynamic operational environments of electric vehicles, advancing manufacturers’ goals of durable, efficient battery PACK design.
FAQ
What materials are used in the 50AMP lithium battery terminals? The terminals use a brass conductor plated with nickel for enhanced conductivity and corrosion resistance. The insulating components consist of flame-retardant PA66 material rated V0, ensuring thermal stability and safety in battery PACK assemblies.
Can these lithium battery terminals be customized for different battery pack requirements? Yes, Huanghua Juheng Technology offers customization options to meet specific technical needs across various battery pack manufacturers. Custom configurations may include adjustments in size, material, or markings to fit tailored energy storage solutions.
How are the 50AMP lithium battery terminals installed to ensure secure connections? Installation involves tightening the M5 screw bore to a maximum torque of 3N·m. The terminals feature silicone sealing rings and color-coded poles to prevent incorrect wiring, ensuring a stable and safe connection for lithium ion battery applications.
What logistics advantages does Huanghua Juheng Technology offer for large-scale orders? Situated near Tianjin and Huanghua Ports within the Bohai Sea Economic Circle, we provide fast, reliable shipping logistics to support B-end clients, including battery pack builders needing timely delivery of high-quality battery pack connectors.
