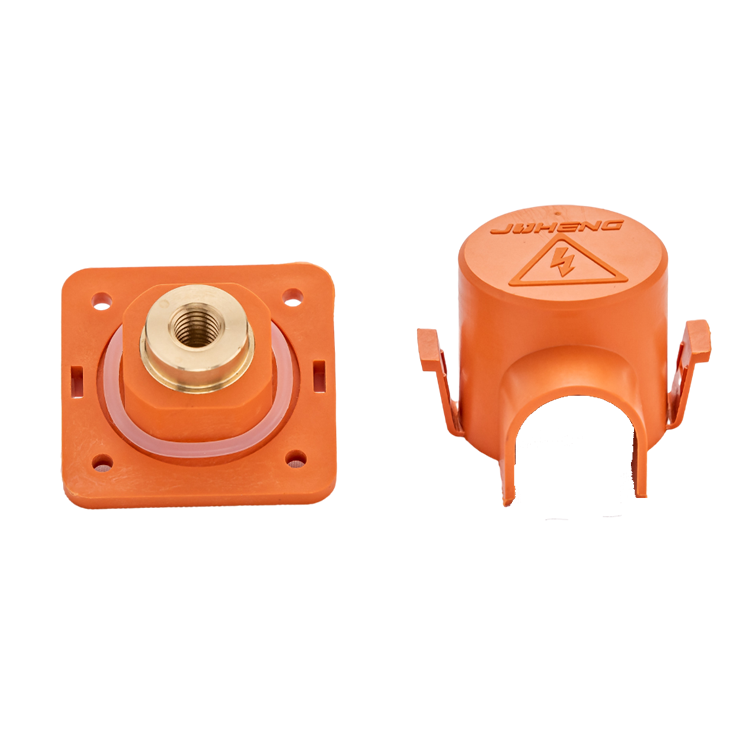

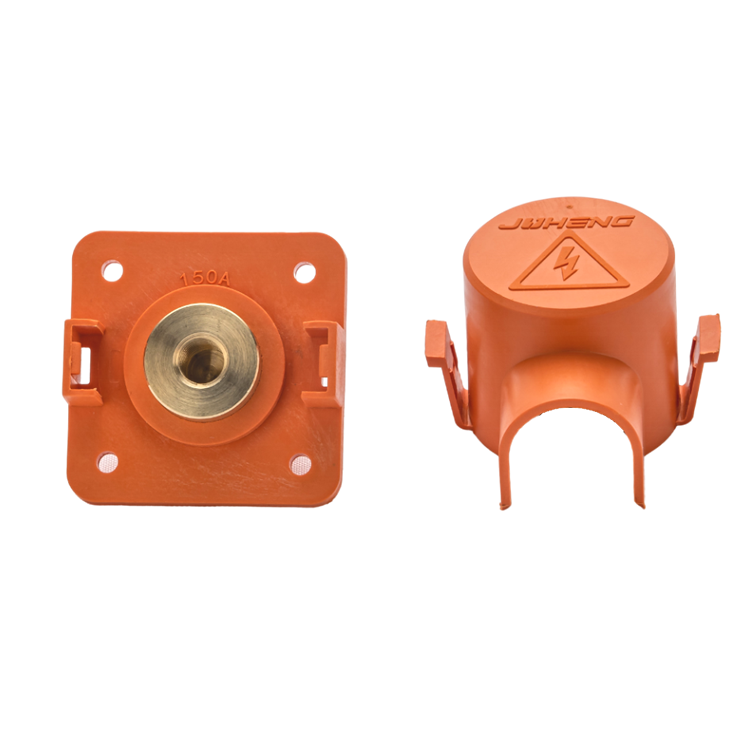

150AMP storage battery connection LITHIUM BATTERY TERMINALS
150AMP storage battery connection LITHIUM BATTERY TERMINALS
150AMP storage battery connection LITHIUM BATTERY TERMINALS
Get The Latest Quote
facebook
line
twitter
whatsapp
pinterest
tumblr
linkedin
Description
Performance parameter
：
1
、
Electrical parameters
■
Rated Voltage
：
600V DC
■
Rated current
：
15
0A
MP
■
Withstand
voltage
：
1500V DC
■
Insulation Resistance
：
≥
500MΩ
■ Contact Resistance
：
≤0.5mΩ
2
、
Mechanical parameter
■
Contact surface diameter
：
1
8
mm
■
Screw bore diameter
：
M
8
■ Tightening torque: M
8*12
Threaded hole (Coarse thread)
：
12
N.m MAX
3
、
Materials composition
■
Conductor:
brass
■
Insulating material
：
PA66 Flame retardant V0 Level
■
Insulation parts thermal deformation temperature
：
205℃
■
Color
：

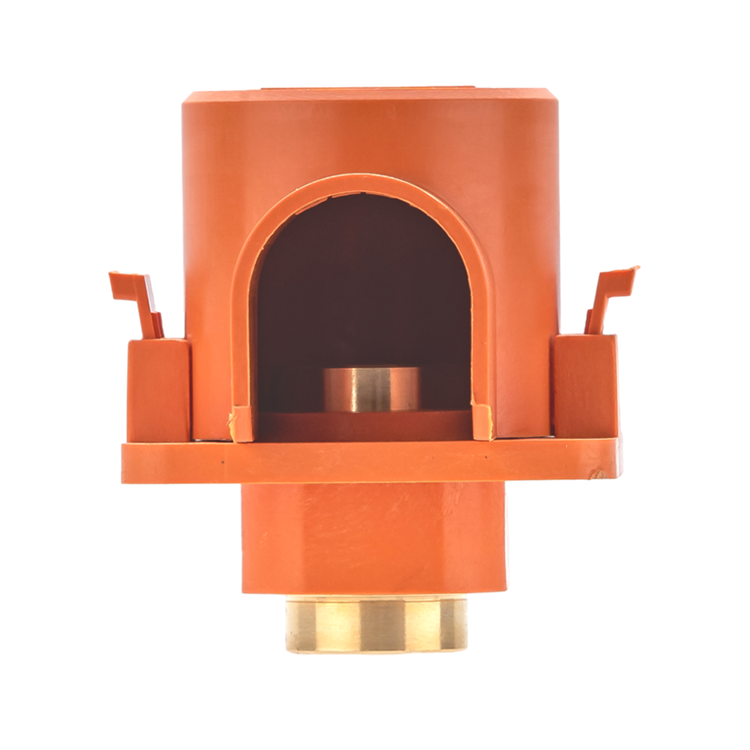

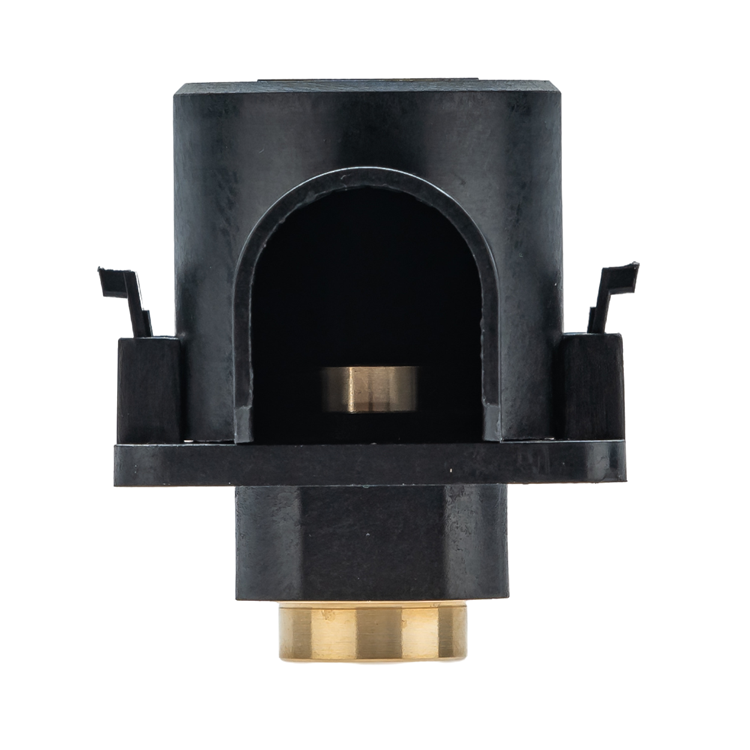

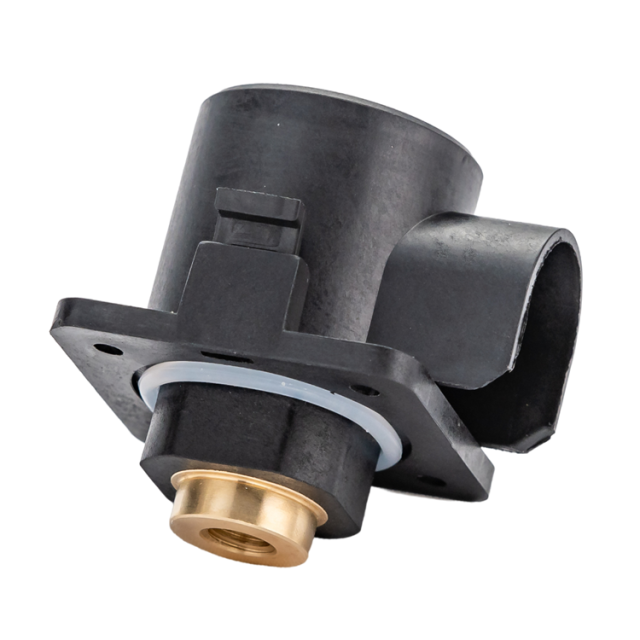

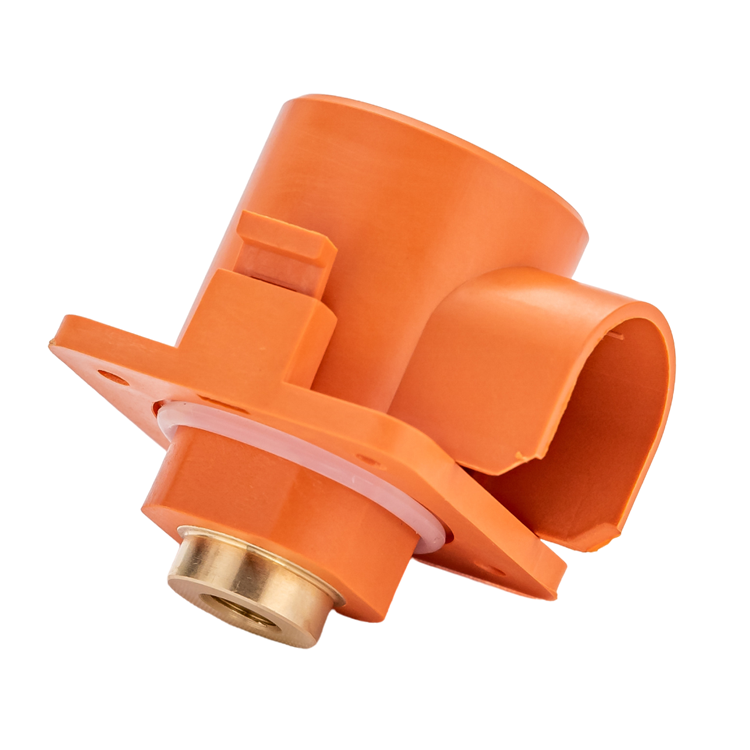

Positive pole orange color / Negative pole black color
■
Sealing ring: silicone

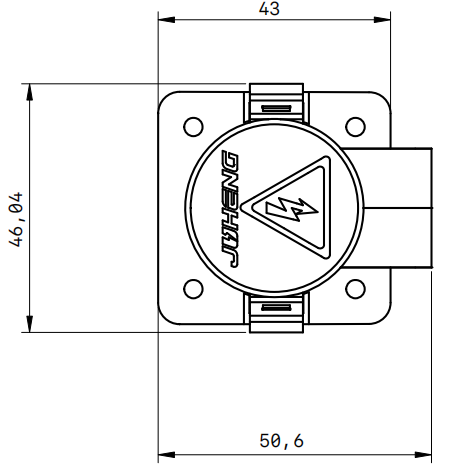

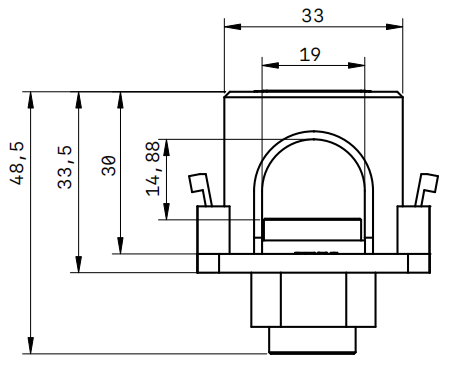

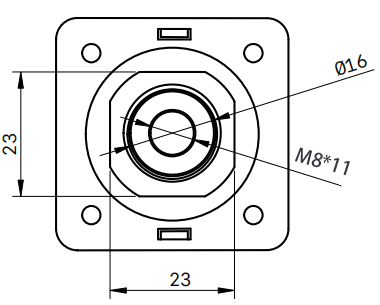

External
dimension
Units
：
mm

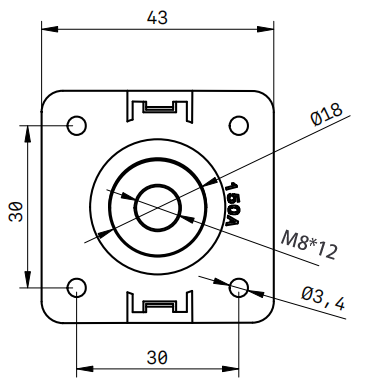

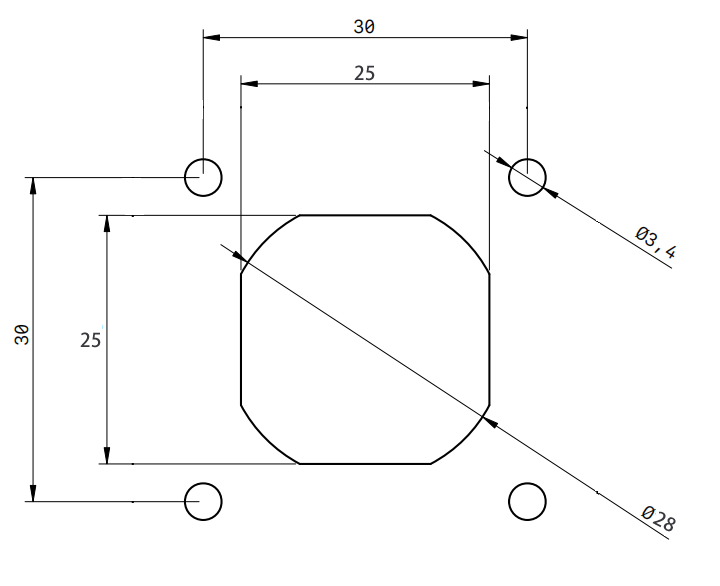

Installation trepanning
Units
:mm
