Our insulated inter-cell connectors provide reliable, low-resistance connections for 16-50 mm² battery connector cables. Ideal for lead-acid and lithium systems, they offer customizable lengths and color coding.
1.Battery soft connecting line specifications 1)Line Length: 110mm-5000mm 2)bore diameter: M8/M10 3)Line Weight: 16-50 mm² 4)Color: grey line,positive terminal red,negative blue customized color also acceptable
2.Battery soft connecting line applications all kinds of battery
3.Battery soft connecting line features 1) small internal resistance 2)perfect ruber material,more durable 3)excellent electrical conductivity

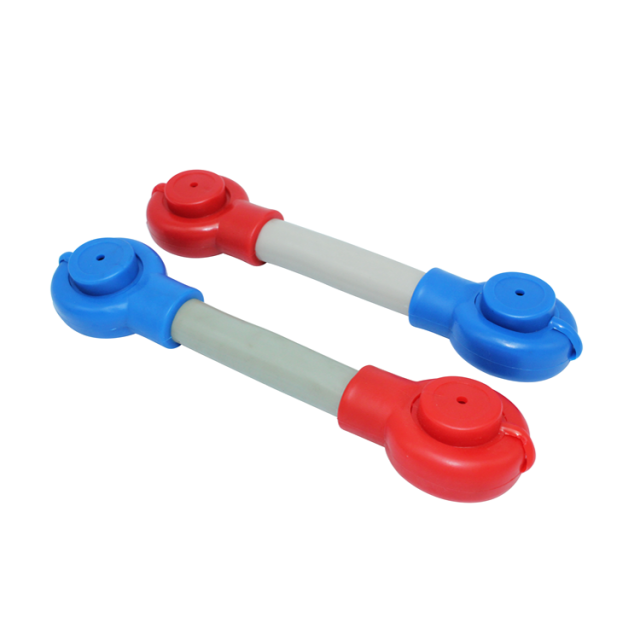

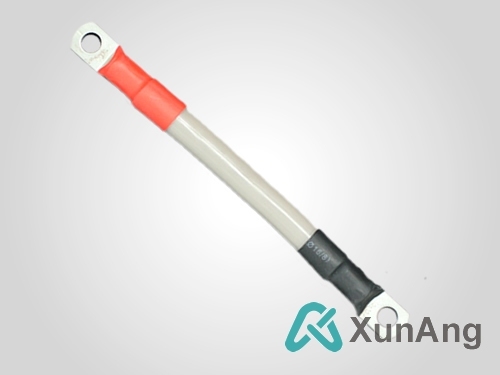

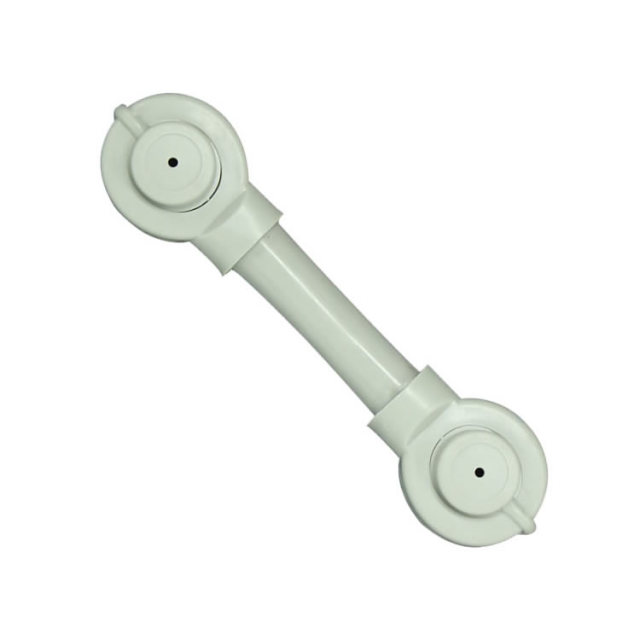

4.Battery soft connecting line photo show
Functional Integration for Battery Pack Assembly These insulated inter-cell connectors are engineered to securely join battery cells with 16-50 mm² battery connector cables, targeting manufacturers and integrators of battery systems. Designed for both lead-acid and lithium battery cables, they enable precise, low-resistance connections vital for high-performance battery pack assemblies. The connectors suit engineering teams requiring reliable inter-cell connectivity for energy storage and electric power applications, supporting flexible pack design and integration workflows. Their color-coded insulation assists in preventing polarity errors, enhancing operational safety in complex battery configurations.
Technical Specifications Ensuring Performance and Compatibility Featuring line lengths ranging from 110 mm to 5000 mm and bore diameters of M8 and M10, these connectors support diverse battery pack configurations with 16-50 mm² battery connector cables. Constructed from durable rubber insulation with red and blue terminals marking positive and negative poles, they ensure safe polarity alignment. The product exhibits low internal resistance and high electrical conductivity, crucial for optimizing circuit efficiency. Custom color options provide adaptability for OEM specifications. Designed by a reputable battery connector supplier, these components comply with rigorous standards required for modern energy storage systems.
Industry Use Cases Enhancing Battery System Reliability Widely applied in the manufacturing of energy storage modules and electric vehicles, these insulated inter-cell connectors support consistent electrical continuity and robust insulation. Their adaptable line length and color coding facilitate rapid prototyping, replacement, and scalable battery pack configurations. As lipo battery connectors and compatible components, they are integrated into testing benches and developmental prototypes, validating system performance under various operational conditions. OEMs and system integrators benefit from these connectors’ reliability and ease of installation, contributing to enhanced battery pack safety and efficiency in demanding real-world applications.
Product Advantages
Design and Structural Excellence for Modular Battery Systems The connectors provide a modular design allowing facile integration within battery packs using 16-50 mm² battery connector cables, delivering flexibility in line length from 110 mm to 5000 mm. Their color-coded grey insulation with differentiated positive (red) and negative (blue) terminals mitigates wiring errors, enhancing system safety. The use of durable rubber materials provides both mechanical protection and optimal electrical conductivity. As a trusted battery connector supplier, the product’s bore diameters of M8 and M10 support standardized fastening solutions, streamlining assembly and maintenance processes across various battery pack types.
Optimized Performance and User-Centric Functionality Operating with low internal resistance, these insulated inter-cell connectors minimize energy losses, essential for maintaining battery efficiency. The customizable line length and terminal color options allow tailored configurations for specific lipo battery connectors or lead-acid systems, improving installation precision. Their robust insulation increases durability under thermal and electrical stress, ensuring longevity and compliance with performance standards expected by procurement managers and engineers. This combination of reliability, ease of use, and adaptability improves return on investment by reducing downtime and enhancing battery system stability.
Use Scenarios
Inter-Cell Connectivity in Energy Storage System Manufacturing In large-scale energy storage system production environments, these insulated inter-cell connectors serve as critical components for linking individual battery cells. The connectors’ adaptability with 16-50 mm² battery connector cables and configurable line lengths facilitate customized pack assembly tailored to specific voltage and current requirements. Their color-coded insulation aids technicians in rapid and error-free installation, while the M8 and M10 bore diameters ensure consistent mechanical fastening under operational vibrations. Integration into automated or semi-automated assembly lines enhances workflow efficiency and ensures compliance with industry electrical safety regulations.
Role in Electric Vehicle Battery Pack Development In the electric vehicle sector, battery pack reliability directly impacts safety and performance. These insulated inter-cell connectors are essential in joining lithium battery cables securely within the high-current modules needed for EV applications. The product’s low resistance properties and robust insulation reduce thermal buildup, contributing to the longevity and operational integrity of battery packs. Customizable line lengths accommodate complex battery architectures typical in EV packs. Serving as a dependable battery connector supplier, the connectors streamline development workflows and repair cycles, supporting rapid prototyping and scalable manufacturing strategies in a highly competitive automotive industry.
FAQ
What materials are used in these insulated inter-cell connectors? The insulated inter-cell connectors by Juheng Technologies feature durable rubber insulation combined with conductive metal cores, ensuring low internal resistance. This design suits both lead-acid and lithium battery cables, providing reliability and safe electrical conductivity in battery pack assemblies.
Can I customize the colors and sizes of the battery connector cables? Yes, these battery connector cables come with standard grey insulation, with red for positive and blue for negative terminals. Custom color options are available to fit specific assembly requirements. Additionally, the line lengths range from 110 mm to 5000 mm to support flexible pack configurations.
What should be considered during installation of these battery connectors? When installing, ensure correct polarity by matching the red and blue terminals to the battery cells’ positive and negative posts, respectively. The connectors support bore diameters M8 or M10, so bolts must fit these sizes securely for a low-resistance, safe connection between cells.
How does Juheng handle logistics and supply chain reliability for wholesale battery connectors? Located near Tianjin and Huanghua ports, Juheng Technologies leverages a strong logistics network within the Bohai Sea Economic Circle for efficient shipping. Their robust supply chain supports consistent availability of battery connector wholesale orders, assuring timely delivery for industrial customers worldwide.
