BATTERY TERMINALS

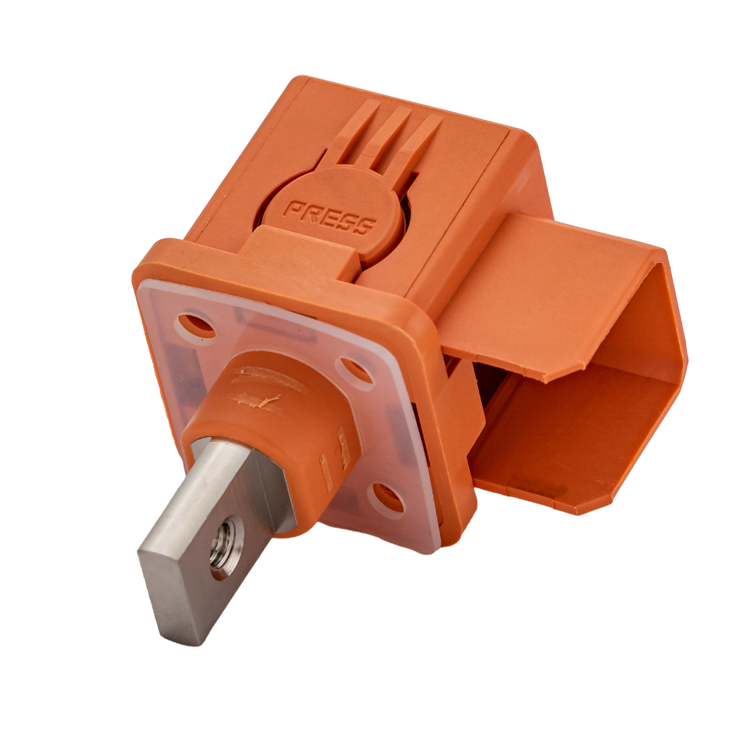

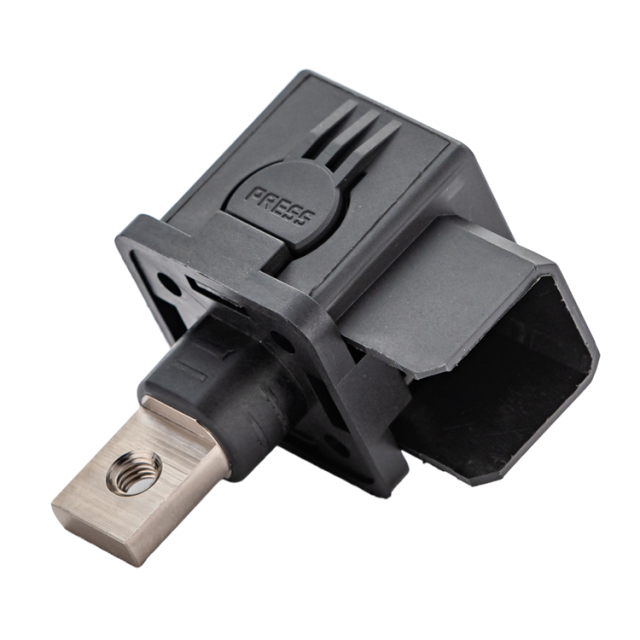

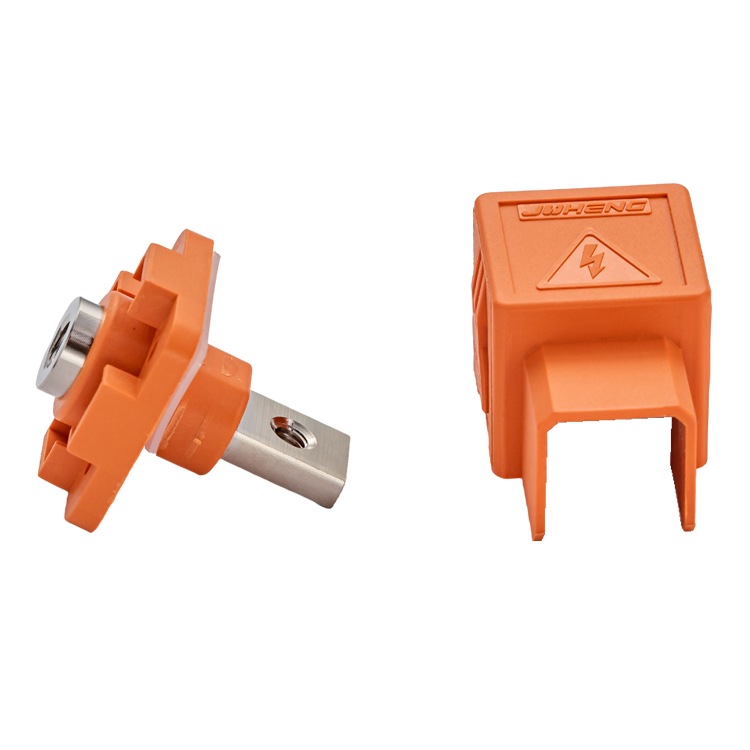

180AMP storage battery connection LITHIUM BATTERY TERMINALS

180AMP storage battery connection LITHIUM BATTERY TERMINALS
Description

Performance parameter
1Electrical parameters
 Rated Voltage1000V DC
 Rated current180AMP
 Withstand voltage2000V DC
 Insulation Resistance500MΩ
■ Contact Resistance≤0.5mΩ

2Mechanical parameter
 Contact surface diameter15mm
 Screw bore diameterM8M6
■ Tightening torque: M8 Threaded hole (Coarse thread)12N.m MAX

3Materials composition
 Conductor: brass , nickel plated
 Insulating materialPA66 Flame retardant V0 Level
 Insulation parts thermal deformation temperature205℃

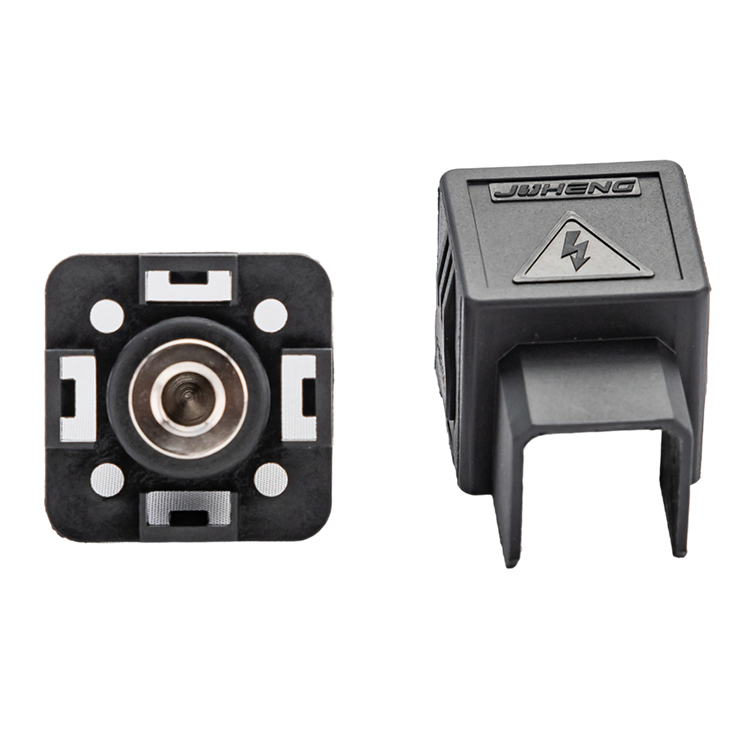

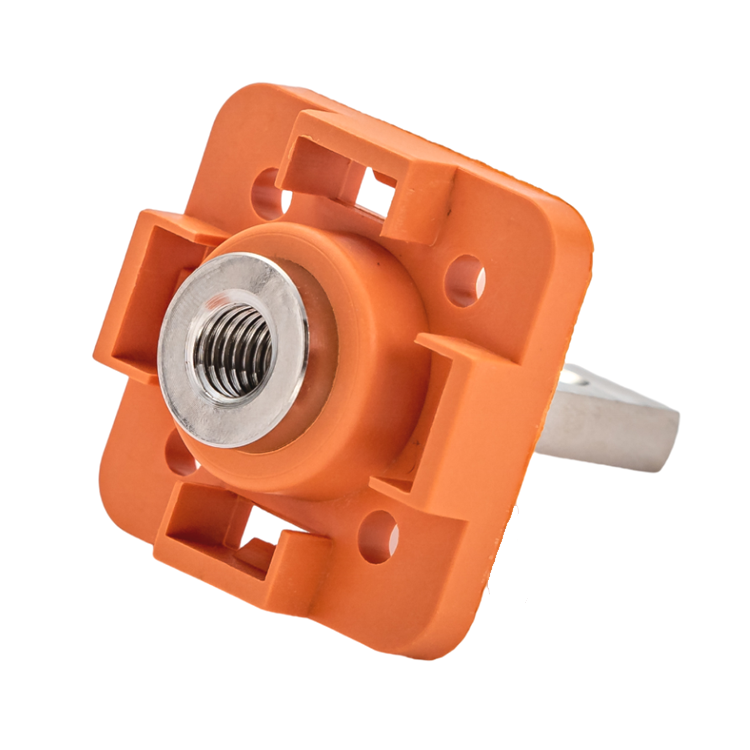

  ColorPositive pole orange color / Negative pole black color
 Sealing ring: silicone

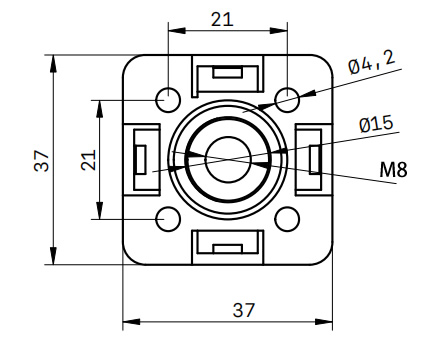

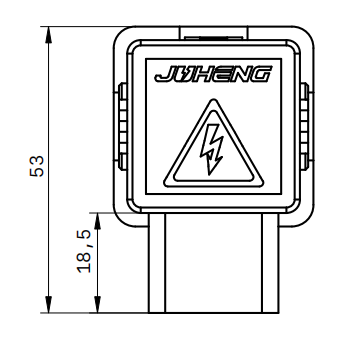

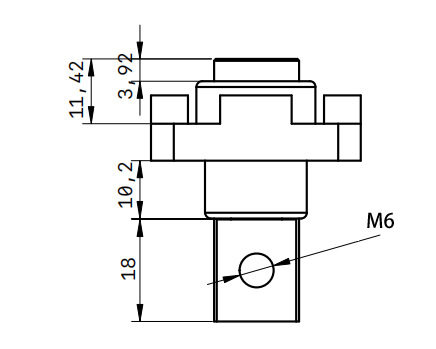

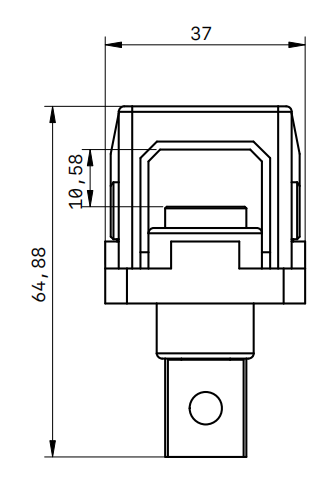

External dimension
   Unitsmm

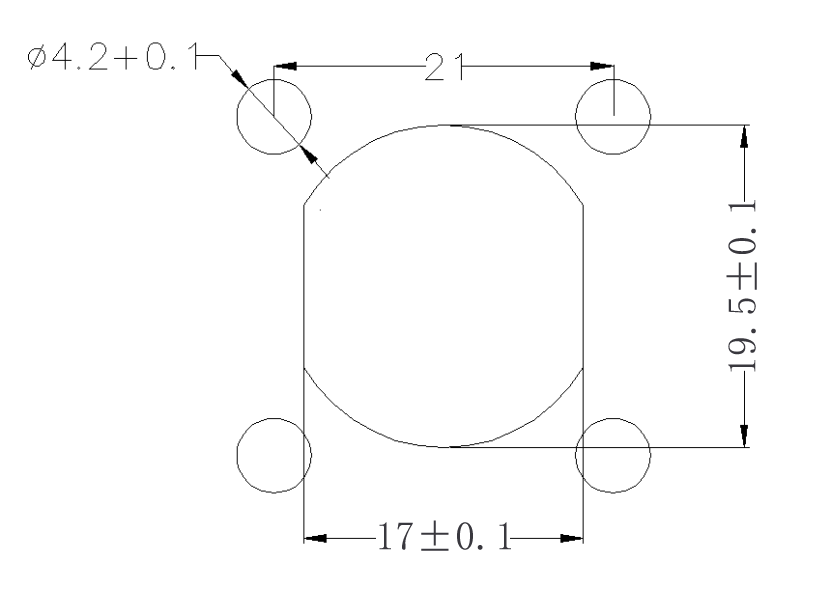

Installation trepanning
  1. Units:mm
